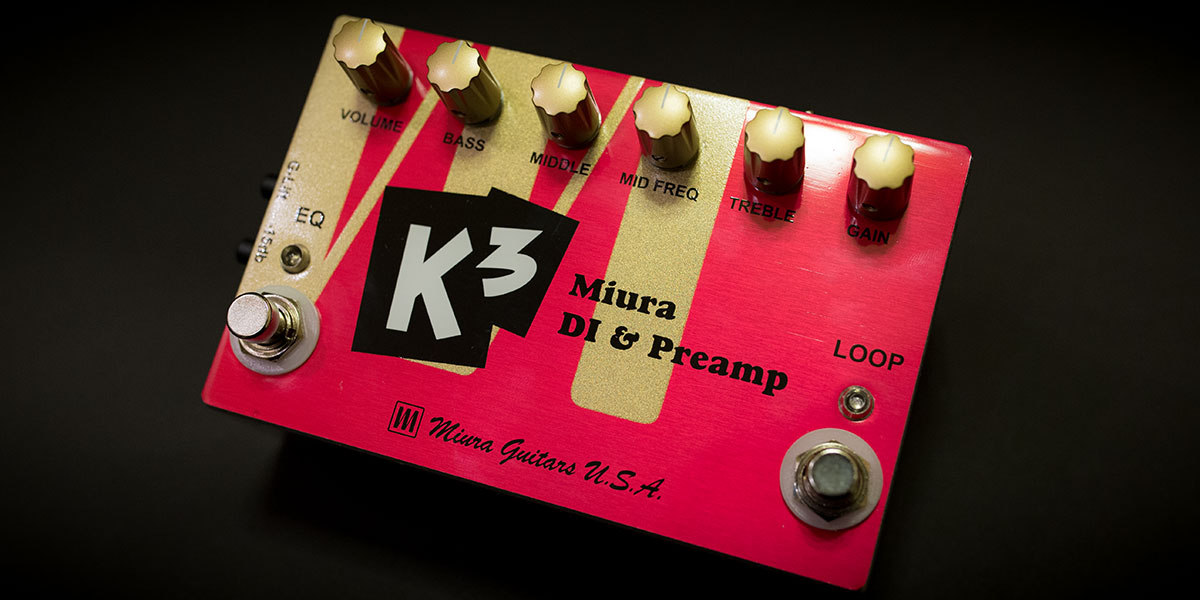

K3 Miura DI & Preamp
K3 Miura DI & Preamp
K3 Miura DI & Preamp
This DI & Preamp extravagantly uses specially selected parts, performs authentic internal boost using a DC converter, holds a headroom that is wide ranged and open by insuring a stable power source, and implements to generate high quality, low tone with extremely insubstantial distortion, Please feel and enjoy the reliable sound quality, trusted by world top players in both live performance and recording.

Features

  • 厳選した抵抗とコンデンサとオペアンプを仕様。信号回路を通るコンデンサにおいては1個のみとしてピュアな信号増幅を実現。原音増幅ではなく過度にならない程度に音色の味付けを電線材等で演出。
  • MIDのパラメトリックイコライザはQとGainを固定とし、能動負荷を用いない回路で構成。演算増幅素子を1つ軽減。
  • 電源電圧は入力の9Vを内部で±15Vに昇圧。昇圧素子はフライバック型のDCDCコンバータを使用。電源容量に十分な余裕を確保。
  • バランス回路はLINEトランスをオペアンプでドライブ。トランスを低インピーダンス源でドライブすることによりワイドレンジを確保。トランスは大きなコアを持ち大きな直流電流に耐えられるものを使用することにより、突発的な磁気飽和を抑制し、低音の安定した再生を確保。

Specifications

LINE OUT impedance10kΩ
BALANCE OUT impedance600Ω
Power consumption150mA
PowerDC9V(center minus)
ManualEn (PDF)
Jp (PDF)
Ask or OrderPlease ask from Contact Form or Find the Dealers
